Electric cars are becoming increasingly widespread, and for many car owners, a fixed charging box at home has become a natural part of everyday life. A charging box makes charging faster, safer and more efficient than using a regular socket. At the same time, it can provide access to smart features such as energy management, scheduling and app-based control.
In this article, you will get a comprehensive overview of different types of charging boxes, their functions and practical features, so you can get an impression of the options available on the market.
The article presents a wide range of charging boxes for private use – from simple models to more advanced solutions with intelligent control functions. The purpose is to provide an informative overview of features, connection options and price levels, so you can more easily assess which type of charging box best suits your home and driving needs. The information about the products is based on publicly available descriptions from manufacturers and retailers and is summarised to provide a clear and neutral overview.

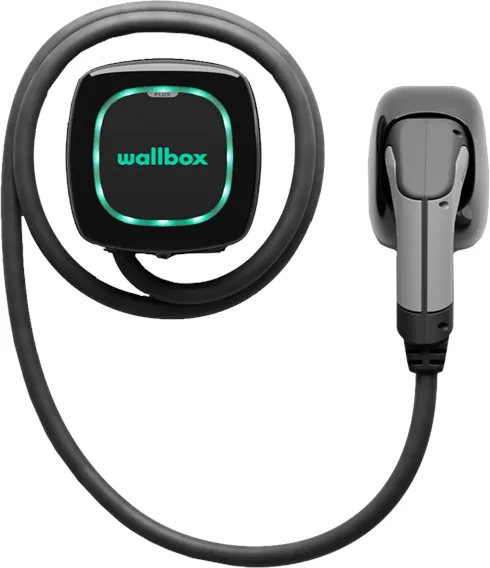

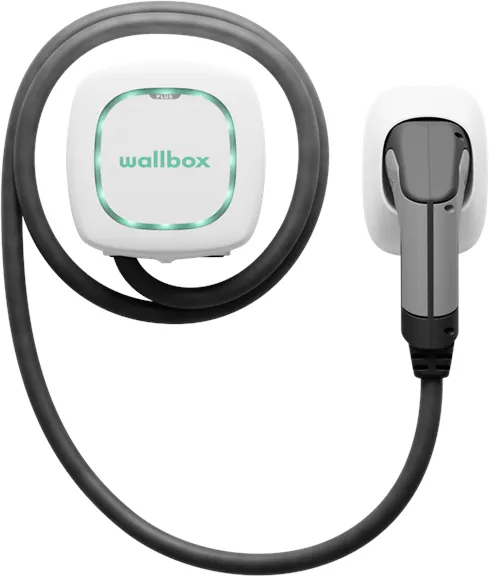

Wallbox Pulsar Plus is an evolution of the previous Pulsar model and now offers both Wi-Fi and Bluetooth connectivity. The charging box is equipped with built-in DC leakage protection and can be used in installations with load balancing and multi-user setup.
The unit supports charging from 1-phase 6A (1.4 kW) up to 3-phase 32A (22 kW) and is compatible with both IT networks (230 V) and TN networks (400 V). This makes it suitable for a wide range of electric and hybrid cars regardless of brand.
With its compact design of 16.3 × 8.2 × 16.6 cm and a weight of only 1 kg, the Pulsar Plus is easy to mount on the wall. It comes with a 7 metre long Type 2 charging cable, providing good reach when charging.
The charging box combines modern communication technology with high safety and efficient power management, making it a flexible solution for both private homes and small commercial installations.
- High charging power: Supports up to 22 kW with 3-phase charging.
- Wireless connectivity: Built-in Wi-Fi and Bluetooth for easy control and monitoring.
- Safety: DC leakage protection and current detection integrated into the unit.
- Compact design: Small and lightweight construction that fits most wall installations.
- Long cable: 7 metre Type 2 charging cable provides flexibility when parking.
Pros and cons
- Supports both 1-phase and 3-phase charging up to 22 kW
- Wi-Fi and Bluetooth connectivity for easy operation
- Built-in DC protection for increased safety
- Compact and lightweight design
- Compatible with both IT and TN networks
- Must be installed by an authorised electrician to maintain the warranty
- The product has been discontinued and may be difficult to find in stock
Pros and cons
Pros
- Supports both 1-phase and 3-phase charging up to 22 kW
- Wi-Fi and Bluetooth connectivity for easy operation
- Built-in DC protection for increased safety
- Compact and lightweight design
- Compatible with both IT and TN networks
Cons
- Must be installed by an authorised electrician to maintain the warranty
- The product has been discontinued and may be difficult to find in stock
Pros
- Supports both 1-phase and 3-phase charging up to 22 kW
- Wi-Fi and Bluetooth connectivity for easy operation
- Built-in DC protection for increased safety
- Compact and lightweight design
- Compatible with both IT and TN networks
Cons
- Must be installed by an authorised electrician to maintain the warranty
- The product has been discontinued and may be difficult to find in stock
Specifications
- Manufacturer: Wallbox
- Model: PLP1-M-2-4-9-001
- Item number: 2957669
- EAN: 8436575275857
- Product type: EV charging station
- Output connection type: IEC 62196 Type 2
- Power supply: 22 kW
- Max. electric current: 32 A
- Required voltage: AC 380/400 V (50–60 Hz)
- Output cable length: 7 m
- Communication technology: Wi-Fi, Bluetooth
- Internet of Things (IoT) compatible: Yes
- Features: Wall-mountable, current detection, 3-phase, DC leakage protection
- Dimensions (W × D × H): 16.3 × 8.2 × 16.6 cm
- Weight: 1 kg
- Colour: White

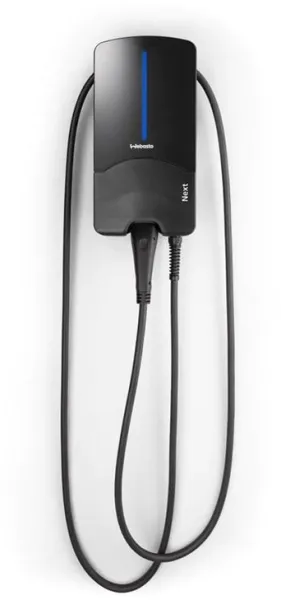

Webasto Next is an intelligent charging box designed for charging electric vehicles with up to 11 kW power. It comes with a fixed 4.5 metre Type 2 cable and is intended for wall mounting. The unit is equipped with WiFi and can be accessed via Webasto ChargeConnect, which allows the user to monitor charging history, energy consumption and status in real time.
The charging box supports dynamic load management, which means it automatically adjusts the charging power according to the building's total power consumption. This helps to avoid peak loads and optimises energy consumption without the need for grid expansion.
Thanks to support for OCPP 1.6J (OCPP 2.0 ready) and Modbus TCP, Webasto Next can be integrated into both private and commercial energy management systems. This makes it possible to use surplus solar energy from a PV system to charge the electric vehicle.
The construction is robust with IP54 rating and IK08 protection against mechanical impacts. The charging box is developed in Germany and has LED indicators that show status during operation. The built-in Type B residual current protection increases safety during charging.
- WiFi and ChargeConnect: Remote monitoring and control via app and portal.
- Dynamic load management: Adjusts charging power according to the building's power consumption.
- PV integration: Possibility of charging with surplus solar energy via EMS system.
- Robust construction: IP54 and IK08 ensure protection against dust, water and mechanical impact.
- Type B residual current relay: Increased safety during charging.
Pros and cons
- Supports both OCPP and Modbus TCP for flexible integration
- Built-in WiFi and energy meter
- Dynamic load management for optimised energy consumption
- Robust design with high protection class
- Can be used with solar systems via energy management system
- Requires installation by an authorised electrician to maintain the warranty
- The product is discontinued and may be difficult to find in stock
Pros and cons
Pros
- Supports both OCPP and Modbus TCP for flexible integration
- Built-in WiFi and energy meter
- Dynamic load management for optimised energy consumption
- Robust design with high protection class
- Can be used with solar systems via energy management system
Cons
- Requires installation by an authorised electrician to maintain the warranty
- The product is discontinued and may be difficult to find in stock
Pros
- Supports both OCPP and Modbus TCP for flexible integration
- Built-in WiFi and energy meter
- Dynamic load management for optimised energy consumption
- Robust design with high protection class
- Can be used with solar systems via energy management system
Cons
- Requires installation by an authorised electrician to maintain the warranty
- The product is discontinued and may be difficult to find in stock
Specifications
- Item number: 3068613
- Model: 5111121D
- EAN: 4054037312519
- Country of manufacture: Germany
- Mounting type: Wall
- Colour: Black
- Display: LED with indicators
- Power source: AC
- Protection: IP54, IK08
- Supported protocols: Modbus TCP, OCPP 1.6 J (OCPP 2.0 ready)
- Number of phases: 3
- Output voltage: 230/400 V
- Frequency: 50 Hz
- Maximum power: 22 kW
- Ethernet LAN: Yes (1 RJ-45 port)
- Operating temperature: -30 to 45 °C
- Storage temperature: -25 to 80 °C
- Relative humidity: 5–95 %
- Cable length: 4.5 m
- Dimensions (W×D×H): 225 × 116 × 447 mm
- Weight: 5.7 kg

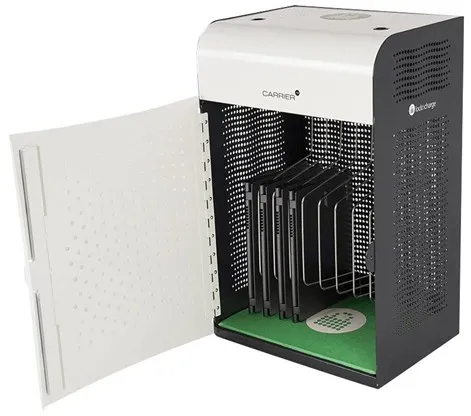

The LocknCharge Carrier 10 Charging Station is a cabinet unit designed to charge, store, and protect up to 10 laptops or tablets. It can be wall-mounted or placed on a desk, providing flexibility in various work environments.
The cabinet is made of steel and equipped with a locking mechanism to prevent unauthorised access. The integrated cable management keeps charging cables organised and reduces clutter.
The unit comes with two baskets with five compartments each, making it easy to transport and distribute devices. It is compatible with a wide range of devices, including Chromebooks, laptops, tablets, and iPads.
The Carrier 10 is designed for use in environments where many devices need to be charged and stored securely, such as educational institutions and offices.
- Capacity for 10 devices: Charges and stores up to 10 notebooks or tablets.
- Flexible mounting: Can be wall-mounted or placed on a desk.
- Secure storage: Lockable steel construction with padlock included.
- Organised charging: Integrated cable management keeps cables in place.
- Transport-friendly baskets: Supplied with two baskets with five compartments each for easy handling of devices.
Pros and cons
- Solid steel construction with lock for increased security
- Space for charging up to 10 devices simultaneously
- Option for both wall and desk mounting
- Supplied with baskets for easy transport of devices
- Integrated cable management for a tidy setup
- Relatively heavy 20 kg construction may require fixed mounting
- The product is discontinued and may be difficult to find in stock
Pros and cons
Pros
- Solid steel construction with lock for increased security
- Space for charging up to 10 devices simultaneously
- Option for both wall and desk mounting
- Supplied with baskets for easy transport of devices
- Integrated cable management for a tidy setup
Cons
- Relatively heavy 20 kg construction may require fixed mounting
- The product is discontinued and may be difficult to find in stock
Pros
- Solid steel construction with lock for increased security
- Space for charging up to 10 devices simultaneously
- Option for both wall and desk mounting
- Supplied with baskets for easy transport of devices
- Integrated cable management for a tidy setup
Cons
- Relatively heavy 20 kg construction may require fixed mounting
- The product is discontinued and may be difficult to find in stock
Specifications
- Manufacturer: LocknCharge
- Model: LNC8200EUROPE
- EAN: 9347210002228
- Product type: Cabinet unit - wall-mountable, desk - lockable
- Recommended use: 10 notebooks/tablets
- Material: Steel
- Dimensions (W x D x H): 42 cm x 34 cm x 66.8 cm
- Weight: 20 kg
- Location: Europe
- Package contents: 2 x 5-slot baskets, device stand
- Lock type: Padlock (included)
- Cable management: Integrated cable management

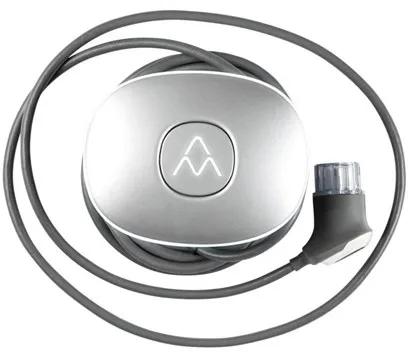

Charge Amps Halo is a wall-mounted charging box with a fixed Type 2 charging cable of 7.5 metres. It supports three-phase charging with a maximum output of 11 kW and a current of up to 16 amperes per phase.
The charging box is made of recycled aluminium and has a stylish, compact design that suits both private and commercial installations. It is developed to operate in demanding climates and can be used at temperatures from -25 °C to 45 °C.
With IP66 classification, the unit is dust- and waterproof, making it suitable for outdoor installation. It also has an extra socket that can be used for charging smaller electric vehicles or engine heaters.
Charge Amps Halo can be updated via the cloud, so the software is always up to date with the latest functionality. LED lighting around the unit provides visual guidance during use and makes it easier to connect the cable in dark environments.
- Three-phase charging: Supports up to 11 kW at 16 A per phase.
- Fixed Type 2 cable: 7.5 metre flexible cable that withstands cold down to -25 °C.
- Robust construction: Housing made of recycled aluminium with IP66 protection.
- Smart software: Option for firmware updates via the cloud.
- Extra outlet: Socket for electric motorcycle or engine heater.
Pros and cons
- Compact and weather-resistant design
- Fixed long charging cable
- Supports three-phase charging up to 11 kW
- Option for software updates via the cloud
- Extra outlet for smaller electric devices
- The product has been discontinued and may be difficult to find in stock
- Fixed cable may be less flexible than replaceable solutions
Pros and cons
Pros
- Compact and weather-resistant design
- Fixed long charging cable
- Supports three-phase charging up to 11 kW
- Option for software updates via the cloud
- Extra outlet for smaller electric devices
Cons
- The product has been discontinued and may be difficult to find in stock
- Fixed cable may be less flexible than replaceable solutions
Pros
- Compact and weather-resistant design
- Fixed long charging cable
- Supports three-phase charging up to 11 kW
- Option for software updates via the cloud
- Extra outlet for smaller electric devices
Cons
- The product has been discontinued and may be difficult to find in stock
- Fixed cable may be less flexible than replaceable solutions
Specifications
- Manufacturer: Charge Amps
- Model: CA-100308
- EAN: 7350084190153
- Item number: 2776823
- Mounting type: Wall
- Housing colour: Silver
- Built-in screen: None
- Number of sockets: 1
- Firmware upgradable: Yes
- IP rating: IP66
- Number of phases: 3
- Output voltage (three-phase): 400 V
- Maximum power: 11 kW
- Maximum current per phase: 16 A
- Operating temperature: -25 to 45 °C
- Width: 262.4 mm
- Depth: 159.4 mm
- Height: 203.2 mm
- Weight: 4 kg
- Cable type: Type 2, fixed 7.5 m

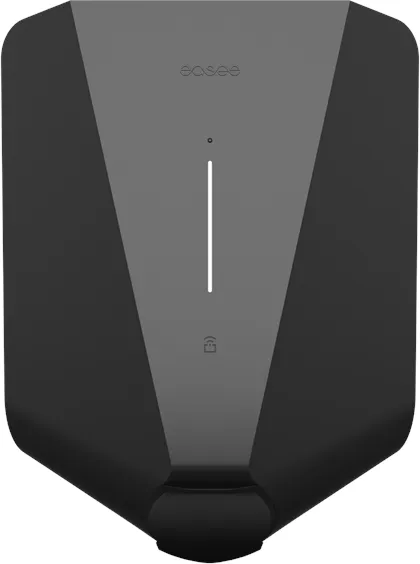

Easee LITE is a compact and robust charging box designed for charging both electric and hybrid cars. It supports charging from 1.4 to 11 kW and is compatible with most cars that use Type 2 connectors.
The charging box is developed and produced in the Nordic region, which contributes to short transport routes and a lower climate footprint. It is built to withstand Nordic weather conditions and is among the most tested and documented models on the market.
Easee LITE has built-in WiFi, Bluetooth and free 4G connectivity for the entire lifetime of the product. It can be controlled via the Easee app or with a charging tag, providing flexibility in daily use. The app allows you to schedule charging times, monitor energy consumption and adjust current strength.
The product is EU-certified with Type Examination Module B from TÜV in Germany, which documents that it meets high safety and quality standards.
- Charges all electric and hybrid cars: Supports Type 2 connector and up to 11 kW charging power.
- Wireless connection: WiFi, Bluetooth and free 4G for the entire lifetime of the product.
- App control: Option for scheduling, monitoring and adjustment via the Easee app.
- Nordic design: Compact and weather-resistant construction produced in the Nordic region.
- Certified safety: EU Type Examination Module B certification from TÜV.
Pros and cons
- Compact and weather-resistant design
- Supports both WiFi, Bluetooth and 4G
- Can be controlled via app or charging tag
- Produced in the Nordic region with focus on quality and sustainability
- EU-certified for safety
- Maximum charging power of 11 kW may be lower than some fast chargers
- The product has been discontinued and may therefore be difficult to find in stock
Pros and cons
Pros
- Compact and weather-resistant design
- Supports both WiFi, Bluetooth and 4G
- Can be controlled via app or charging tag
- Produced in the Nordic region with focus on quality and sustainability
- EU-certified for safety
Cons
- Maximum charging power of 11 kW may be lower than some fast chargers
- The product has been discontinued and may therefore be difficult to find in stock
Pros
- Compact and weather-resistant design
- Supports both WiFi, Bluetooth and 4G
- Can be controlled via app or charging tag
- Produced in the Nordic region with focus on quality and sustainability
- EU-certified for safety
Cons
- Maximum charging power of 11 kW may be lower than some fast chargers
- The product has been discontinued and may therefore be difficult to find in stock
Specifications
- Manufacturer: Easee
- Model: 10603
- Item number: 3213618
- EAN: 7090052311172
- Charging power: 1.4–11 kW
- Connector type: Type 2
- Connection: WiFi, Bluetooth, 4G (free for the lifetime of the product)
- Built-in kWh meter: Yes
- Certification: EU Type Examination Module B (TÜV)
- Design and production: Nordic region
- Colour: Black

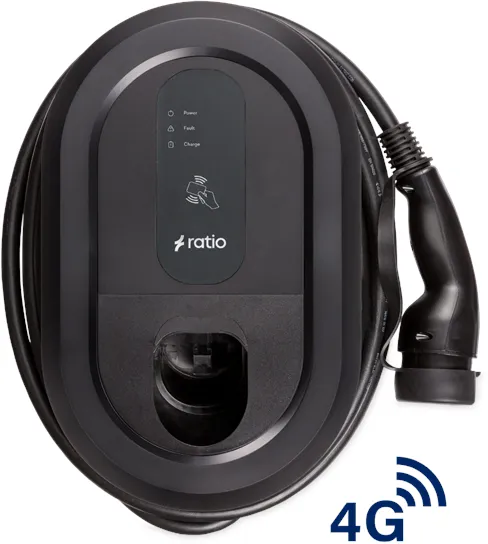

Ratio io6 4G 11-22kW 5m is a wall-mounted charging box developed for efficient charging of electric cars. It supports three-phase charging with a maximum output of 22 kW and can be adjusted between 6A and 32A, providing flexibility depending on car type and installation.
The charging box is equipped with a factory-installed 4G module and can also be connected via WiFi or ethernet. This combination makes it possible to monitor and control charging remotely as well as integrate the box into smart energy systems.
With SenseKit accessories, the io6 can be used for dynamic load balancing and solar charging, optimising power consumption in relation to the household's overall electricity use. The unit has built-in DC 6mA protection and over/undervoltage protection for increased safety.
The housing measures 400 × 250 × 105 mm and is CE marked. The product comes with a 5-metre fixed cable and has a limited factory warranty of five years.
- High charging power: Supports up to 22 kW three-phase charging.
- Flexible connectivity: 4G, WiFi and ethernet provide multiple communication options.
- Dynamic load balancing: Compatible with SenseKit for optimised energy distribution.
- Safety: Built-in DC 6mA protection as well as over- and undervoltage protection.
- Future-proof: Supports OCPP 1.6J for integration with charging management systems.
Pros and cons
- High charging power up to 22 kW
- Option for dynamic load balancing and solar integration
- Multiple connectivity options (4G, WiFi, ethernet)
- Built-in safety protection against fault current
- Future-proof with OCPP 1.6J
- Requires installation by an authorised electrician to maintain the warranty
- SenseKit for dynamic load balancing must be purchased separately
Pros and cons
Pros
- High charging power up to 22 kW
- Option for dynamic load balancing and solar integration
- Multiple connectivity options (4G, WiFi, ethernet)
- Built-in safety protection against fault current
- Future-proof with OCPP 1.6J
Cons
- Requires installation by an authorised electrician to maintain the warranty
- SenseKit for dynamic load balancing must be purchased separately
Pros
- High charging power up to 22 kW
- Option for dynamic load balancing and solar integration
- Multiple connectivity options (4G, WiFi, ethernet)
- Built-in safety protection against fault current
- Future-proof with OCPP 1.6J
Cons
- Requires installation by an authorised electrician to maintain the warranty
- SenseKit for dynamic load balancing must be purchased separately
Specifications
- Manufacturer: Ratio
- Model: 38991
- Item number: 3289410
- EAN: 8720629965369
- Charging power: Up to 22 kW (400V AC ±10%, 3-phase)
- Current: Adjustable between 6A and 32A
- Communication: 4G, WiFi, Ethernet, Bluetooth
- Protocol: OCPP 1.6J
- Protection: DC 6mA, over- and undervoltage protection
- Features: PowerSharing, DLB and solar functions via SenseKit
- Dimensions: 400 × 250 × 105 mm
- Cable: 5-metre fixed
- Certification: CE marked
- Warranty: 5-year limited factory warranty

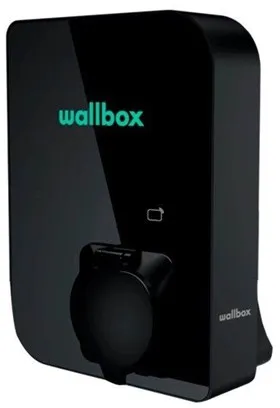

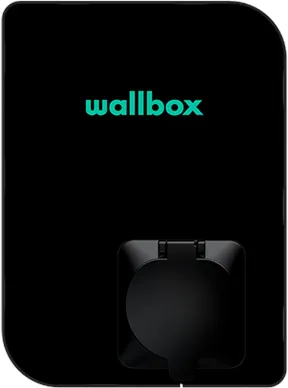

Wallbox Copper SB is an 11 kW charging box developed for charging electric vehicles with both Type 1 and Type 2 plugs. The universal output makes it suitable for different car models and installation types.
The unit supports communication via Wi-Fi, Bluetooth, RFID and LAN, allowing monitoring and control through the myWallbox platform. This makes it possible to manage multiple users and distribute available power between several chargers.
The charging box is wall-mounted and built to withstand dust, water and impact, making it suitable for both indoor and outdoor use. It is also equipped with DC leakage protection for increased safety.
With a maximum current of 16 A and three-phase connection, the Copper SB delivers a total charging power of up to 11 kW. The compact size and black design provide a discreet and modern appearance.
- Universal connection: Supports both Type 1 and Type 2 plugs via IEC 62196 standard.
- Network connected: Wi-Fi, Bluetooth, RFID and LAN provide flexible communication and access management.
- Safe construction: Equipped with DC leakage protection and resistant to dust, water and impact.
- Compact design: Measures 19.2 × 11.3 × 26 cm and weighs only 2 kg.
- Efficient charging: Delivers up to 11 kW at 400 V three-phase current.
Pros and cons
- Compatible with both Type 1 and Type 2 electric cars
- Wi-Fi and RFID provide easy access management
- Robust and weather-resistant construction
- Can be integrated into the myWallbox platform for monitoring and control
- Requires three-phase installation for full power
- The product has been discontinued and may be difficult to find in stock
Pros and cons
Pros
- Compatible with both Type 1 and Type 2 electric cars
- Wi-Fi and RFID provide easy access management
- Robust and weather-resistant construction
- Can be integrated into the myWallbox platform for monitoring and control
Cons
- Requires three-phase installation for full power
- The product has been discontinued and may be difficult to find in stock
Pros
- Compatible with both Type 1 and Type 2 electric cars
- Wi-Fi and RFID provide easy access management
- Robust and weather-resistant construction
- Can be integrated into the myWallbox platform for monitoring and control
Cons
- Requires three-phase installation for full power
- The product has been discontinued and may be difficult to find in stock
Specifications
- Manufacturer: Wallbox
- Model: CPB1-S-2-3-8-002-B
- Item number: 3040572
- EAN: 8436575274614
- Product type: EV charging station
- Output connection: IEC 62196 Type 2
- Power supply: 11 kW
- Max. current: 16 A
- Required voltage: AC 400 V (50–60 Hz)
- Features: Wall-mounted, dust-, water- and impact-resistant, 3-phase, DC leakage protection
- Communication: Bluetooth, RFID, Wi-Fi, LAN
- Dimensions (W × D × H): 19.2 × 11.3 × 26 cm
- Weight: 2 kg
- Colour: Black
- IoT compatible: Yes

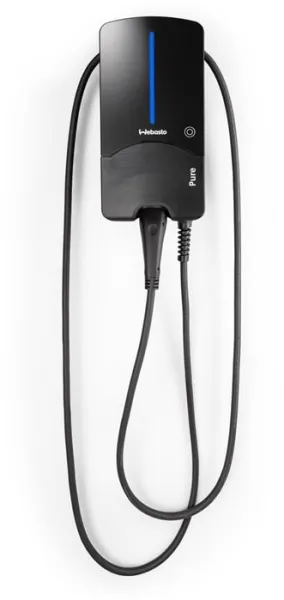

The Webasto Pure Black Edition is a three-phase charging box developed for charging electric cars with a Type 2 connector. It delivers an adjustable charging power from 3.7 to 22 kW, making it suitable for both fast and gentler charging depending on the car and installation.
The charging box is equipped with an integrated Type B residual current relay, which increases safety and can reduce installation costs as no external relay is required. It has a 4.5 metre long fixed cable and a compact design with cable hanger and magnetic lock.
An LED display shows operating status, and a key lock can prevent unauthorised use. The unit is manufactured in Germany and meets IP54 and IK08 standards for dust and impact protection, making it suitable for both indoor and outdoor installation.
With its black design and solid construction, the Webasto Pure Black Edition is a functional and stylish solution for private charging of electric cars.
- High charging power: Adjustable from 3.7 to 22 kW for flexible charging.
- Integrated Type B residual current relay: Increases safety and simplifies installation.
- Robust construction: IP54 and IK08 certified for use both indoors and outdoors.
- User-friendly design: LED status display, cable hanger and key lock.
- Compatibility: Fits all electric cars with Type 2 connector.
Pros and cons
- High and adjustable charging power up to 22 kW
- Built-in Type B residual current relay
- Suitable for both indoor and outdoor installation
- Solid German construction with IP54 protection
- Fixed 4.5 m cable with Type 2 connector
- Requires installation by an authorised electrician
- Fixed cable may be less flexible than replaceable cables
Pros and cons
Pros
- High and adjustable charging power up to 22 kW
- Built-in Type B residual current relay
- Suitable for both indoor and outdoor installation
- Solid German construction with IP54 protection
- Fixed 4.5 m cable with Type 2 connector
Cons
- Requires installation by an authorised electrician
- Fixed cable may be less flexible than replaceable cables
Pros
- High and adjustable charging power up to 22 kW
- Built-in Type B residual current relay
- Suitable for both indoor and outdoor installation
- Solid German construction with IP54 protection
- Fixed 4.5 m cable with Type 2 connector
Cons
- Requires installation by an authorised electrician
- Fixed cable may be less flexible than replaceable cables
Specifications
- Manufacturer: Webasto
- Model: 5110494A
- Item number: 2918516
- EAN: 4054037300790
- Product type: EV charging station
- Output connection type: IEC 62196 Type 2
- Charging power: Up to 22 kW
- Maximum current: 32 A
- Voltage: AC 230/400 V (50 Hz)
- Phases: 3-phase
- Cable length: 4.5 m
- Dimensions (W × D × H): 22.5 × 11.6 × 44.7 cm
- Weight: 5.7 kg
- Colour: Black (Black Edition)
- Protection class: IP54, IK08
- Mounting: Wall-mounted
- Features: LED display, key lock, cable hanger, built-in alarm

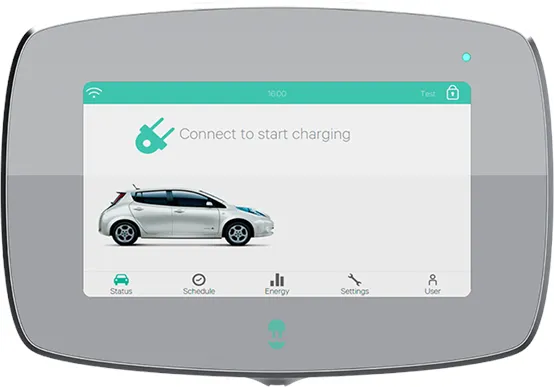

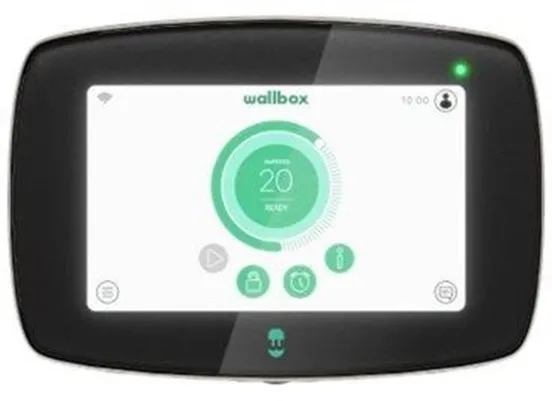

Wallbox Commander 2 is a compact and powerful charging box that delivers up to 22 kW of charging power via a 3-phase system. It is equipped with an IEC 62196 Type 2 connector and a 5-metre-long cable, providing flexibility in positioning the car during charging.
The unit is designed for wall mounting and has a robust housing that is both dust and water resistant. The built-in touchscreen makes it easy to operate and monitor charging directly on the device.
Commander 2 supports multiple communication technologies, including Wi-Fi, Bluetooth, RFID and LAN, making it possible to integrate it into smart home solutions or manage charging via a network.
With features such as DC leakage protection and shock resistance, safety is prioritised, and the solid construction makes it suitable for both private and commercial installations.
- High charging power: Up to 22 kW via 3-phase power supply.
- Smart connectivity: Supports Wi-Fi, Bluetooth, RFID and LAN.
- User-friendly operation: Integrated touchscreen for control and monitoring.
- Safe construction: Equipped with DC leakage protection, dust and water resistance.
- Flexible installation: 5-metre charging cable and wall-mountable design.
Pros and cons
- High charging power of up to 22 kW
- Multiple connectivity options (Wi-Fi, Bluetooth, RFID, LAN)
- Touchscreen for easy operation
- Robust and water-resistant construction
- Built-in DC leakage protection
- Requires 3-phase installation for full charging power
- The product has been discontinued and may be difficult to find in stock
Pros and cons
Pros
- High charging power of up to 22 kW
- Multiple connectivity options (Wi-Fi, Bluetooth, RFID, LAN)
- Touchscreen for easy operation
- Robust and water-resistant construction
- Built-in DC leakage protection
Cons
- Requires 3-phase installation for full charging power
- The product has been discontinued and may be difficult to find in stock
Pros
- High charging power of up to 22 kW
- Multiple connectivity options (Wi-Fi, Bluetooth, RFID, LAN)
- Touchscreen for easy operation
- Robust and water-resistant construction
- Built-in DC leakage protection
Cons
- Requires 3-phase installation for full charging power
- The product has been discontinued and may be difficult to find in stock
Specifications
- Manufacturer: Wallbox
- Model: CMX2-0-2-4-8-002
- Item number: 3069565
- EAN: 8436575276427
- Product type: EV charging station
- Output connection type: IEC 62196 Type 2
- Power supply: 22 kW
- Max. electric current: 32 A
- Required voltage: AC 400 V (50–60 Hz)
- Cable length: 5 m
- Dimensions (W × D × H): 22.1 × 11.5 × 15.2 cm
- Weight: 2.4 kg
- Colour: Black
- Features: Wall-mountable, dustproof, water-resistant, touchscreen, shock-resistant, 3-phase, DC leakage protection
- Communication technology: Bluetooth, RFID, Wi-Fi, LAN
- IoT compatibility: Yes

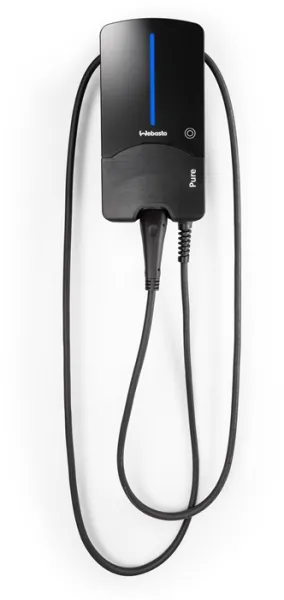

The Webasto Pure Charging Box 22 kW Type 2 Black Edition is a German-made charging station that delivers up to 22 kW of charging power. It can be configured for different power levels from 3.7 to 22 kW, making it flexible for both the car and the installation.
The charging box is equipped with a 7-metre-long fixed Type 2 cable and an integrated Type B residual current device, which increases safety and can reduce installation costs compared to models without a built-in relay.
The design is black and intended for wall mounting. It has an LED display that shows operating status and can be locked with a key to prevent unauthorised use. A magnetic lock and cable holder are integrated into the construction for convenient cable handling.
The unit is compatible with all electric cars with Type 2 connector and is built to withstand outdoor use with IP54 rating and impact resistance according to the IK08 standard.
- High charging power: Up to 22 kW three-phase charging.
- Integrated Type B residual current device: Increases safety and simplifies installation.
- Long cable: 7 metre fixed Type 2 charging cable.
- Robust construction: IP54 and IK08 certified for outdoor use.
- User-friendly design: LED status display, key lock and cable holder.
Pros and cons
- High charging power up to 22 kW
- Built-in Type B residual current device
- Long 7 metre cable
- Solid and weather-resistant construction
- Compatible with all Type 2 electric cars
- Requires installation by an authorised electrician
- No smart features or app control
Pros and cons
Pros
- High charging power up to 22 kW
- Built-in Type B residual current device
- Long 7 metre cable
- Solid and weather-resistant construction
- Compatible with all Type 2 electric cars
Cons
- Requires installation by an authorised electrician
- No smart features or app control
Pros
- High charging power up to 22 kW
- Built-in Type B residual current device
- Long 7 metre cable
- Solid and weather-resistant construction
- Compatible with all Type 2 electric cars
Cons
- Requires installation by an authorised electrician
- No smart features or app control
Specifications
- Manufacturer: Webasto
- Model: 5110495A
- Item number: 2918522
- EAN: 4054037295263
- Product type: EV charging station
- Output connection type: IEC 62196 Type 2
- Charging power: Up to 22 kW
- Maximum current: 32 A
- Voltage: AC 230/400 V (50 Hz)
- Cable length: 7 m
- Mounting: Wall mountable
- Features: 3-phase, LED display, key lock, magnetic lock, cable holder
- Protection class: IP54
- Impact resistance: EN 62262 IK08
- Dimensions (W × D × H): 22.5 × 11.6 × 44.7 cm
- Weight: 6.8 kg
- Colour: Black (Black Edition)

Wallbox Pulsar Plus is a compact EV charging station capable of delivering up to 22 kW via a 7-metre Type 2 cable. It is designed for both electric and plug-in hybrid vehicles and can be used in installations with 1 to 3 phases.
The charging box supports both IT networks (230 V) and TN networks (400 V) and can be adjusted for current levels from 6 A to 32 A. It is equipped with DC leakage protection and can be integrated into systems with load balancing and multi-user solutions.
With built-in Wi-Fi and Bluetooth, the unit can connect to Wallbox’s app or cloud solutions, allowing monitoring and control of charging. This makes it suitable for both private homes and small commercial installations.
The robust and discreet black design makes it easy to mount on the wall, and the low weight of around 1 kg makes installation simple for an authorised electrician.
- High charging power: Up to 22 kW via 3-phase connection.
- Wireless connectivity: Supports both Wi-Fi and Bluetooth.
- Safety: Integrated DC leakage protection and current detection.
- Flexible installation: Compatible with both IT and TN networks.
- Compact design: Small form factor and low weight of only 1 kg.
Pros and cons
- Supports both single- and three-phase installations
- Wi-Fi and Bluetooth provide easy monitoring and control
- High charging power up to 22 kW
- Built-in DC leakage protection for increased safety
- Compact and lightweight design
- Must be installed by an authorised electrician to maintain the warranty
- The product has been discontinued and may be difficult to find in stock
Pros and cons
Pros
- Supports both single- and three-phase installations
- Wi-Fi and Bluetooth provide easy monitoring and control
- High charging power up to 22 kW
- Built-in DC leakage protection for increased safety
- Compact and lightweight design
Cons
- Must be installed by an authorised electrician to maintain the warranty
- The product has been discontinued and may be difficult to find in stock
Pros
- Supports both single- and three-phase installations
- Wi-Fi and Bluetooth provide easy monitoring and control
- High charging power up to 22 kW
- Built-in DC leakage protection for increased safety
- Compact and lightweight design
Cons
- Must be installed by an authorised electrician to maintain the warranty
- The product has been discontinued and may be difficult to find in stock
Specifications
- Manufacturer: Wallbox
- Model: PLP1-M-2-4-9-002
- Item number: 2957666
- EAN: 8436575275840
- Product type: EV charging station
- Output connection type: IEC 62196 Type 2
- Power supply: 22 kW
- Maximum current: 32 A
- Required voltage: AC 380/400 V (50–60 Hz)
- Output cable length: 7 m
- Communication technology: Wi-Fi, Bluetooth
- Internet of Things (IoT) compatible: Yes
- Features: Wall-mountable, current detection, 3-phase, DC leakage protection
- Dimensions (W × D × H): 16.3 × 8.2 × 16.6 cm
- Weight: 1 kg
- Colour: Black

The Webasto Next Charging Box is a German-made charging station designed for safe and efficient charging of electric cars. It supports an adjustable charging power from 3.7 to 11 kW and comes with a fixed 7-metre Type 2 cable that fits most electric cars on the market.
The unit is equipped with an integrated Type B residual current relay, which increases safety and can reduce installation costs as no external relay is required. The charging box is compatible with both wall and stand mounting and can be used in three-phase installations.
Webasto Next supports both LAN and WiFi connections, making it possible to monitor and control charging via compatible systems such as Monta Charging. LED indicators and QR code access provide easy status display and user control.
With a compact design and IP54 rating, the charging box is suitable for both indoor and outdoor use. It meets applicable European safety and environmental standards, including OCPP 1.6 J, RoHS and REACH.
- Adjustable charging power: From 3.7 to 11 kW for flexible charging.
- Integrated Type B residual current relay: Increases safety and simplifies installation.
- WiFi and LAN connection: Enables monitoring and control via network.
- 7-metre Type 2 cable: Provides good reach to the car's charging port.
- Robust construction: IP54-rated and suitable for both indoor and outdoor use.
Pros and cons
- High safety with built-in Type B residual current relay
- Flexible charging power up to 11 kW
- WiFi and LAN communication for easy integration
- Long 7-metre cable included
- Suitable for both wall and stand mounting
- Requires installation by an authorised electrician
- The product has been discontinued and may be difficult to find in stock
Pros and cons
Pros
- High safety with built-in Type B residual current relay
- Flexible charging power up to 11 kW
- WiFi and LAN communication for easy integration
- Long 7-metre cable included
- Suitable for both wall and stand mounting
Cons
- Requires installation by an authorised electrician
- The product has been discontinued and may be difficult to find in stock
Pros
- High safety with built-in Type B residual current relay
- Flexible charging power up to 11 kW
- WiFi and LAN communication for easy integration
- Long 7-metre cable included
- Suitable for both wall and stand mounting
Cons
- Requires installation by an authorised electrician
- The product has been discontinued and may be difficult to find in stock
Specifications
- Manufacturer: Webasto
- Model: 5111122C
- Item number: 3068627
- EAN: 4054037312526
- Product type: EV charging station
- Output connection type: Type 2
- Charging power: Up to 11 kW
- Max. current: 16 A
- Voltage: 400 V (50 Hz)
- Phases: 3-phase
- Cable length: 7 m
- Communication: LAN, WiFi
- IoT compatibility: Yes
- Mounting: Wall or stand mounting
- Dimensions (W × D × H): 22.5 × 11.6 × 44.7 cm
- Weight: 5.3 kg
- Protection class: IP54, IK08
- Compliance standards: EN 60664, OCPP 1.6 J, RED 2014/53/EU, RoHS 2011/65/EU, REACH 2006/1907, WEEE 2012/19/EU
- Localisation: Europe

Wallbox Commander 2 is an intelligent EV charging station designed for commercial environments and semi-public areas. It supports charging of both electric vehicles and plug-in hybrid cars from all car brands and can deliver up to 22 kW via a 3-phase connection.
The unit is equipped with built-in DC 6 mA protection, which eliminates the need for an external type B residual current device. It can be adapted to both IT and TN power systems and handles everything from 1-phase 6A/1.4 kW to 3-phase 32A/22 kW.
The charging box has an integrated touchscreen, which makes it possible to control charging directly on the device. The screen can be customised with the company logo or messages, and access can be secured via PIN code, RFID card or Wallbox app.
Commander 2 is compatible with the myWallbox platform, which allows monitoring, user management and energy management. The robust construction with IP54/IK10 rating makes it resistant to dust, water and mechanical impacts, making it suitable for both indoor and outdoor installation.
- High charging power: Up to 22 kW via 3-phase power supply.
- Built-in DC protection: Eliminates the need for an external type B residual current device.
- Touchscreen: Provides easy access and the ability to customise with logos and messages.
- Flexible connectivity: Supports Wi-Fi, Bluetooth, RFID and LAN.
- Robust design: IP54/IK10-rated housing for both indoor and outdoor use.
Pros and cons
- High charging power of up to 22 kW
- Built-in DC 6 mA protection
- Multiple communication options (Wi-Fi, Bluetooth, RFID, LAN)
- User-friendly touchscreen with customisation options
- Suitable for both IT and TN power systems
- Requires installation by an authorised electrician to maintain the warranty
- Primarily aimed at commercial and semi-public environments rather than private use
Pros and cons
Pros
- High charging power of up to 22 kW
- Built-in DC 6 mA protection
- Multiple communication options (Wi-Fi, Bluetooth, RFID, LAN)
- User-friendly touchscreen with customisation options
- Suitable for both IT and TN power systems
Cons
- Requires installation by an authorised electrician to maintain the warranty
- Primarily aimed at commercial and semi-public environments rather than private use
Pros
- High charging power of up to 22 kW
- Built-in DC 6 mA protection
- Multiple communication options (Wi-Fi, Bluetooth, RFID, LAN)
- User-friendly touchscreen with customisation options
- Suitable for both IT and TN power systems
Cons
- Requires installation by an authorised electrician to maintain the warranty
- Primarily aimed at commercial and semi-public environments rather than private use
Specifications
- Manufacturer: Wallbox
- Model: CMX2-0-2-4-8-001
- EAN: 8436575275925
- Product type: EV charging station
- Output power: 22 kW
- Maximum current: 32 A
- Required voltage: AC 400 V (50/60 Hz)
- Output connection: IEC 62196 Type 2
- Cable length: 5 m
- Communication: Wi-Fi, Bluetooth, RFID, LAN
- IoT compatibility: Yes
- Protection rating: IP54 / IK10
- Features: Wall-mountable, water- and dust-resistant, touchscreen, 3-phase, DC leakage protection
- Dimensions (W x D x H): 22.1 × 11.5 × 15.2 cm
- Weight: 2.4 kg
- Colour: White

The Webasto Pure Black Edition is a German-made charging box developed for safe and efficient charging of electric cars with Type 2 connectors. It delivers up to 11 kW of charging power and can be configured for lower power levels from 3.7 kW, making it flexible in terms of installation and power capacity.
The charging box is equipped with a 7-metre fixed cable and an integrated Type B residual current device, which increases safety and can reduce installation costs as no external relay of this type is required.
The design is compact and functional with built-in cable holder, magnetic lock and LED display showing operating status. A mechanical key lock prevents unauthorised use, and the unit is suitable for both indoor and outdoor installation thanks to its IP54 rating.
Webasto Pure is compatible with all electric cars using Type 2 connectors, and the 3-phase design ensures fast charging compared to standard household sockets.
- Up to 11 kW charging power: Fast charging compared to standard sockets.
- Integrated Type B residual current device: Increases safety and simplifies installation.
- 7-metre cable: Provides flexibility when parking and connecting.
- LED display: Clearly shows charging and operating status.
- Wall-mountable design: Robust design with IP54 protection against dust and water.
Pros and cons
- High build quality and German manufacturing
- Integrated Type B residual current device
- Long 7-metre cable
- Simple operation and clear status display
- Compatible with all Type 2 electric cars
- Requires installation by an authorised electrician
- Not equipped with smart features such as app control or WiFi
Pros and cons
Pros
- High build quality and German manufacturing
- Integrated Type B residual current device
- Long 7-metre cable
- Simple operation and clear status display
- Compatible with all Type 2 electric cars
Cons
- Requires installation by an authorised electrician
- Not equipped with smart features such as app control or WiFi
Pros
- High build quality and German manufacturing
- Integrated Type B residual current device
- Long 7-metre cable
- Simple operation and clear status display
- Compatible with all Type 2 electric cars
Cons
- Requires installation by an authorised electrician
- Not equipped with smart features such as app control or WiFi
Specifications
- Manufacturer: Webasto
- Model: 5110497A
- Item number: 2918511
- EAN: 4054037295287
- Product type: EV charging station
- Output connection: IEC 62196 Type 2
- Charging power: Up to 11 kW
- Max. current: 16 A
- Voltage: AC 230/400 V (50 Hz)
- Phases: 3-phase
- Cable length: 7 m
- Dimensions (W × D × H): 22.5 × 11.6 × 44.7 cm
- Weight: 6.8 kg
- Colour: Black (Black Edition)
- Protection class: IP54, EN 62262 IK08
- Mounting: Wall-mountable
- Display: LED status display
- Safety: Integrated Type B residual current device, key lock

Wallbox Copper SB is a compact and efficient charging box designed for charging both electric and plug-in hybrid cars. It supports up to 22 kW charging power and can be adapted to various electrical installations from single-phase 6A to three-phase 32A.
The unit is equipped with Wi-Fi, Bluetooth, LAN and RFID, allowing for wireless control and access management. The built-in 6 mA DC leakage protection means that there is no need for an external type B residual current device.
The charging box has a robust design that is dust and water resistant, and it can be wall-mounted. It is compatible with both IT networks (230 V) and TN networks (400 V), making it suitable for different power grid types.
With its modern appearance and black finish, the Copper SB fits into both private and professional environments where a reliable and technologically advanced charging solution is desired.
- High charging power: Supports up to 22 kW with three-phase connection.
- Flexible compatibility: Can charge both type 1 and type 2 cars depending on the cable.
- Built-in DC protection: 6 mA DC leakage protection eliminates the need for an external type B residual current device.
- Communication technology: Wi-Fi, Bluetooth, LAN and RFID provide easy control and access management.
- Robust construction: Water- and dust-resistant design for wall mounting.
Pros and cons
- Supports both type 1 and type 2 charging
- High charging power up to 22 kW
- Built-in DC leakage protection
- Wi-Fi and RFID communication for easy control
- Compact and robust design
- Requires installation by an authorised electrician
- The product has been discontinued and may be difficult to find in stock
Pros and cons
Pros
- Supports both type 1 and type 2 charging
- High charging power up to 22 kW
- Built-in DC leakage protection
- Wi-Fi and RFID communication for easy control
- Compact and robust design
Cons
- Requires installation by an authorised electrician
- The product has been discontinued and may be difficult to find in stock
Pros
- Supports both type 1 and type 2 charging
- High charging power up to 22 kW
- Built-in DC leakage protection
- Wi-Fi and RFID communication for easy control
- Compact and robust design
Cons
- Requires installation by an authorised electrician
- The product has been discontinued and may be difficult to find in stock
Specifications
- Manufacturer: Wallbox
- Model: CPB1-S-2-4-8-002
- Item number: 2957675
- EAN: 8436575274638
- Product type: EV charging station
- Output connection type: IEC 62196 Type 2
- Maximum power: 22 kW
- Maximum current: 32 A
- Required voltage: AC 400 V (50–60 Hz)
- Phases: Three-phase
- Communication: Wi-Fi, Bluetooth, LAN, RFID
- Features: Wall-mountable, dust- and water-resistant, impact-resistant, DC leakage protection
- Dimensions (W × D × H): 19.2 × 11.3 × 26 cm
- Weight: 2 kg
- Colour: Black
- Compatibility: IT network 230 V and TN network 400 V

The Webasto Pure Charging Box 11 kW Type 2 Black Edition is a German-made charging unit developed for safe and efficient charging of electric cars. It delivers up to 11 kW of charging power, making charging significantly faster than using a regular socket.
The charging box has an adjustable charging power from 3.7 to 11 kW, so it can be adapted to both the car and the installation. It is equipped with a 4.5 metre long type 2 cable and an integrated RCD-DD DC protection relay, which reduces the need for additional protective equipment during installation.
The design is functional and compact with built-in cable suspension and magnetic lock, making it easy to keep track of the cable. An LED display shows operating status, and a key lock prevents unauthorised use.
The charging box is compatible with all electric cars with a type 2 plug and is made in a black 'Black Edition' design that combines simple aesthetics with practical functionality.
- Adjustable charging power: From 3.7 to 11 kW for flexible charging.
- Integrated RCD-DD: Built-in DC protection for increased safety.
- Type 2 cable: 4.5 metre cable with fixed plug.
- User-friendly design: Cable suspension, magnetic lock and LED status display.
- Locking function: Can be secured with a key against unauthorised use.
Pros and cons
- High build quality and German production
- Integrated DC protection (RCD-DD)
- Adjustable charging power up to 11 kW
- Compatible with all type 2 electric cars
- Simple and robust construction
- Requires installation by an authorised electrician
- Fixed cable may limit flexibility when using multiple cars
Pros and cons
Pros
- High build quality and German production
- Integrated DC protection (RCD-DD)
- Adjustable charging power up to 11 kW
- Compatible with all type 2 electric cars
- Simple and robust construction
Cons
- Requires installation by an authorised electrician
- Fixed cable may limit flexibility when using multiple cars
Pros
- High build quality and German production
- Integrated DC protection (RCD-DD)
- Adjustable charging power up to 11 kW
- Compatible with all type 2 electric cars
- Simple and robust construction
Cons
- Requires installation by an authorised electrician
- Fixed cable may limit flexibility when using multiple cars
Specifications
- Manufacturer: Webasto
- Model: 5110496A
- Item number: 2918505
- EAN: 4054037295270
- Charging power: Up to 11 kW (adjustable 3.7–11 kW)
- Cable type: Type 2, 4.5 metres
- Integrated protection: RCD-DD DC protection relay
- Nominal frequency: 50 Hz
- Operating temperature: -30 to 55 °C
- Storage temperature: -30 to 80 °C
- Width: 225 mm
- Depth: 116 mm
- Height: 447 mm
- Weight: 4.6 kg
- Colour: Black (Black Edition)
- Mounting type: Floor
- LED indicators: Yes
- Country of origin: Germany

Wallbox Pulsar Plus is an evolution of the previous Pulsar model and now offers both Wi-Fi and Bluetooth connectivity. The charging box is equipped with built-in DC protection (residual current device) and can be integrated into systems with load balancing and multi-user setup.
The unit supports charging from 1-phase 6A (1.4 kW) up to 3-phase 32A (22 kW) and is compatible with both IT networks (230 V) and TN networks (400 V). This makes it suitable for a wide range of electric and hybrid cars regardless of brand.
With its compact size of 16.3 × 8.2 × 16.6 cm and weight of only 1 kg, the Pulsar Plus is easy to mount on the wall. It comes in black and with a 5 metre long Type 2 charging cable, providing good reach when charging.
The charging box is designed to be installed by an authorised electrician to ensure proper function and preservation of the warranty.
- High charging power: Supports up to 22 kW with 3-phase charging.
- Wireless connection: Built-in Wi-Fi and Bluetooth allow remote control and monitoring.
- Compact design: Small and lightweight unit that fits discreetly on the wall.
- Safety: Integrated DC protection (residual current device).
- Flexible installation: Compatible with both IT and TN power networks.
Pros and cons
- Supports both 1- and 3-phase charging up to 22 kW
- Wi-Fi and Bluetooth connectivity for easy control
- Compact and lightweight design
- Built-in DC protection for increased safety
- Compatible with most electric and hybrid cars
- Requires installation by an authorised electrician
- The product has been discontinued and may be difficult to find in stock
Pros and cons
Pros
- Supports both 1- and 3-phase charging up to 22 kW
- Wi-Fi and Bluetooth connectivity for easy control
- Compact and lightweight design
- Built-in DC protection for increased safety
- Compatible with most electric and hybrid cars
Cons
- Requires installation by an authorised electrician
- The product has been discontinued and may be difficult to find in stock
Pros
- Supports both 1- and 3-phase charging up to 22 kW
- Wi-Fi and Bluetooth connectivity for easy control
- Compact and lightweight design
- Built-in DC protection for increased safety
- Compatible with most electric and hybrid cars
Cons
- Requires installation by an authorised electrician
- The product has been discontinued and may be difficult to find in stock
Specifications
- Manufacturer: Wallbox
- Model: PLP1-0-2-4-9-002
- Item number: 2957661
- EAN: 8436575273273
- Product type: EV charging station
- Output connection type: IEC 62196 Type 2
- Power supply: 22 kW
- Maximum current: 32 A
- Required voltage: AC 240/400 V (50–60 Hz)
- Communication technology: Wi-Fi, Bluetooth
- Output cable length: 5 m
- Dimensions (W × D × H): 16.3 × 8.2 × 16.6 cm
- Weight: 1 kg
- Colour: Black
- Mounting: Wall-mounted
